Coffee grinding is an art form; every process step counts when striving for that perfect brew. Among the hurdles that coffee aficionados often face is static electricity, a common nuisance that can compromise the quality of the grind.
The Acaia Ion Beam solves coffee grinding's biggest annoyance: static electricity. Using industrial-grade ion generation technology, this compact device neutralizes static charges that cause grounds to cling to your grinder and dosing cup. It mounts directly to Acaia's Orbit grinder or any tripod, provides up to 8 hours of battery life, and eliminates the need for messy water-based solutions like the Ross Droplet Technique.
What Makes the Ion Beam Different
The Ion Beam tackles static electricity with dual ion generation technology. Unlike traditional methods that add moisture to beans, this device generates both negative and positive ions to neutralize charges during grinding.
The result? Cleaner counters, less waste, and perfectly distributed grounds in your portafilter or dosing cup.
Dual Ion Generation Technology

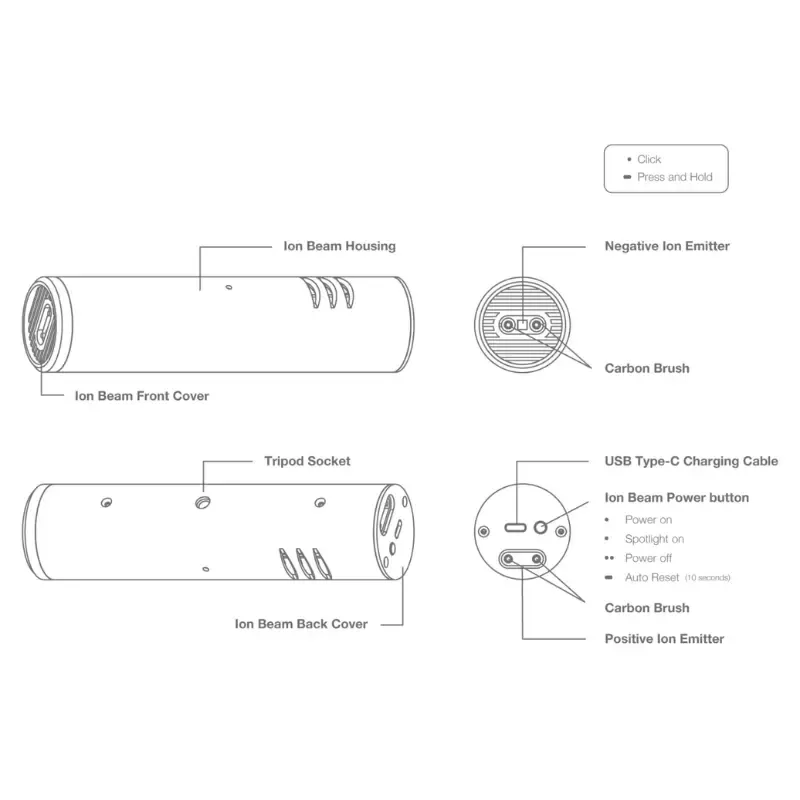

The Ion Beam generates negative ions from its front end and positive ions from the back. This dual-system design handles any static scenario:
- Positive charges (most common): Front end emits negative ions
- Negative charges: Flip the device to use positive ion emission
- Variable conditions: Adapts to different roast levels, grinder types, and humidity
According to Acaia Co-Founder Rex Tseng: "The majority of coffee grounds are positively charged. Therefore, the front of the Ion Beam generates negative ions to neutralize the charged coffee particles while coffee grounds are exiting the chute."
Built to Last
The Ion Beam's construction prioritizes both durability and portability:
- Materials: Aluminum and polycarbonate housing
- Weight: 188.5 grams (lightweight and portable)
- Dimensions: 42mm diameter × 170mm length
- Mounting: 1/4"-20 thread (fits Orbit grinder and standard tripods)
This mounting flexibility means you can use it with virtually any grinder setup, not just Acaia products.
Technical Specifications
| Specification | Details |
|---|---|
| Weight | 188.5 grams |
| Dimensions | Diameter: 42mm, Length: 170mm |
| Materials | Aluminum and Polycarbonate |
| Battery | 3.7V, 780mAh Lithium-Ion |
| Battery Life | Up to 8 hours |
| Charging | USB Type-C |
| Mounting Thread | 1/4"-20 (Orbit grinder and tripod compatible) |
| Connectivity | Bluetooth 5.0 |
| Warranty | 1-Year |
The 8-hour battery life handles multiple days of home use or a full shift in a commercial setting. Bluetooth 5.0 enables firmware updates and potential future app integration.
How It Works
Static electricity builds naturally during grinding due to friction between beans, burrs, and grinder components. This causes lightweight coffee particles to cling to surfaces or clump together.

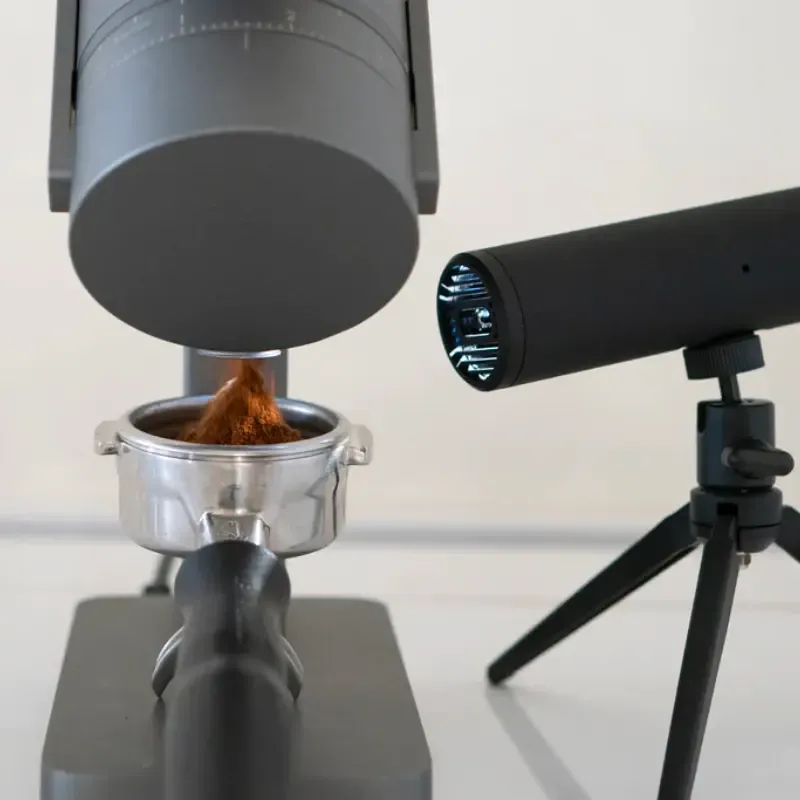

The Ion Beam positions itself near the grinder's output chute, flooding the exit path with ions that neutralize charges as grounds flow through. The effect is immediate and dramatic—grounds fall cleanly into your container without flyaway particles or clumping.

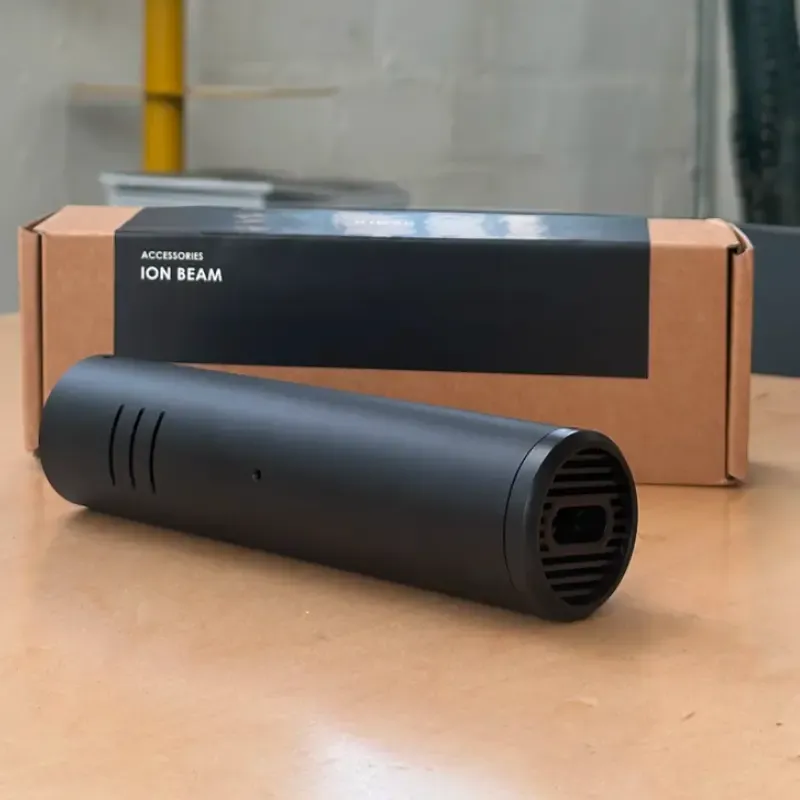

What's in the Box
The Ion Beam package includes everything needed to start:
- Acaia Ion Beam device
- L-Shape Mount for Orbit grinder attachment
- USB Type-C charging cable
- Quick start guide
Note: A tripod stand is not included, but any standard photography tripod with a 1/4"-20 thread works perfectly.
Ion Beam vs. Ross Droplet Technique
The Ross Droplet Technique (RDT) reduces static by adding a small amount of water to beans before grinding. While effective, it has drawbacks:
RDT Challenges:
- Requires precise water measurement
- Can affect grind consistency with too much water
- Adds moisture to your grinder over time
- Extra step in your workflow
Ion Beam Advantages:
- No mess or moisture
- Consistent results regardless of beans or conditions
- One-time setup, continuous use
- Works with any grinder
The Ion Beam provides a cleaner, more consistent solution without the guesswork of water addition.
▶ How long does the Ion Beam battery last?
▶ Can I use the Ion Beam with grinders other than the Orbit?
▶ Do I need to use both ion generators?
▶ How do I know if the Ion Beam is working?
Final Thoughts
The Acaia Ion Beam represents a significant leap forward in coffee grinding technology. By eliminating static electricity at its source, it solves one of the most frustrating aspects of coffee preparation while reducing waste and improving workflow efficiency.
Its thoughtful design, robust construction, and compatibility with various grinders make it a valuable addition to any coffee setup—whether you're pulling shots at home or running a busy café. The Ion Beam delivers a cleaner, more professional grinding experience without the compromises of traditional static-reduction methods.
For coffee enthusiasts seeking precision and consistency in their daily routine, the Ion Beam is a worthwhile investment that pays dividends in quality and convenience.
